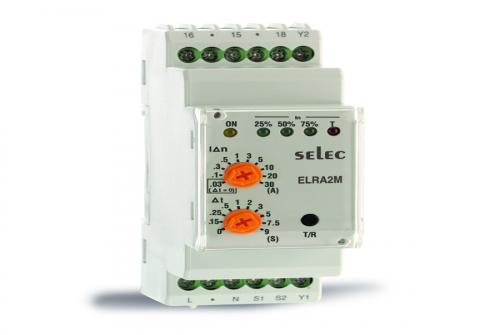

Analog Earth Leakage Relay [ELRA2M]
Measuring Parameter
Monitors True RMS Earth Leakage Current (upto 30A )
Electrical Connection : 1Ø-2W, 3Ø-4W, 3Ø-3W
Trip Setting : 30mA – 30A
Time Ranges : Trip Time Delay: 0 to 9 sec (NA when In=0.03A)
Accuracy
Trip: ± 5% of Set Trip Current, Time: ± 5% of set Time + Response Time
Output Contact : 1 C / O (SPDT )
Output Rating : NO / 10A@277V AC / 28DC(1)
Supply Voltage : 230V AC (±15%)
Size : 35mm
Mounting Type : DIN Rail Mount
Certification : CE
